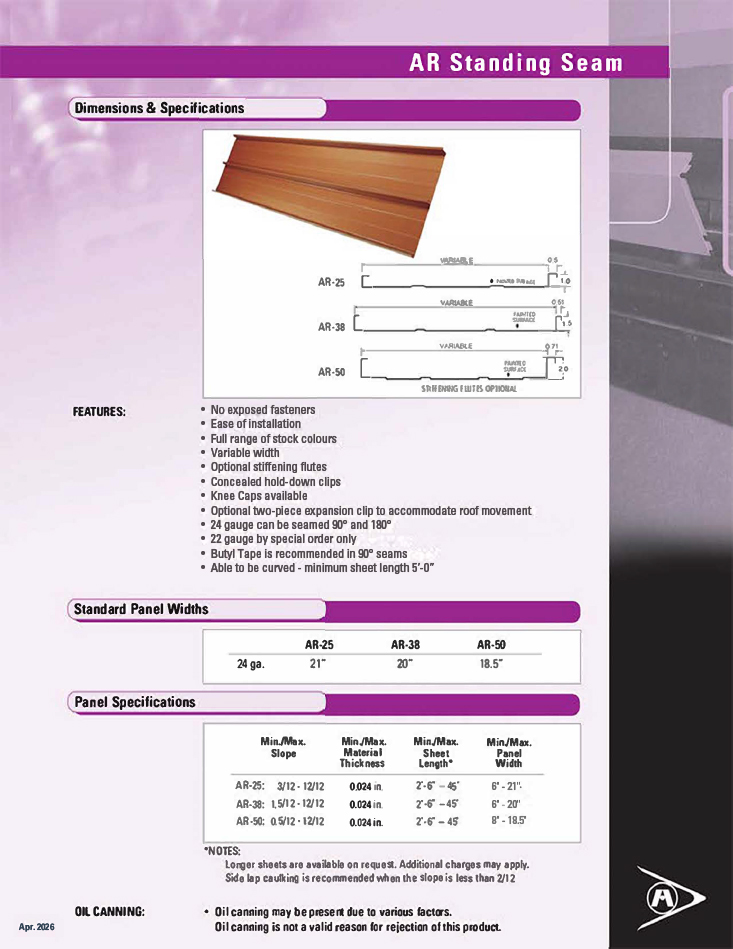

Product Sheet

AR Standing Seam

Our Standing Seam AR metal roofing is available in 26, 24 and 22 gauge, in variable widths and with side lap rib heights of 1”, 1 ½” or 2” (27.94 mm, 38.1 mm or 50.8 mm). Agway’s AR series also features optional, two-piece expansion clips to accommodate movement of the roof, and can be seamed at either 90º or180º. With a 180º seam and optional seam caulking, panels can be used on low slopes (AR-38 down to 1.5/12 and AR-50 down to 0.5/12).

Unlike many traditional alternatives like slate or tile, our Standing Seam Profile is easy to install, more cost effective, 100% recyclable and facilitates more creativity in design. In fact, this profile can even be curved!

Whether you choose a profile from our Standing Seam, Nail Strip, or Snap Lock roof cladding systems, the result will be a stunning, architecturally distinctive roof that installs easily and has no exposed fasteners. All these durable Agway roof cladding products are available in a full range of stock colours, in variable panel widths, and with optional stiffening flutes. All are single skin applications and must be applied over a solid substrate and waterproof membrane, using clips at a maximum of 2’ centres. A full range of flashings and accessories are available from Agway to complete your project.


Measurement Type


Profile Picture

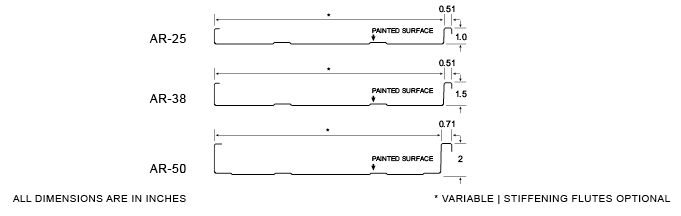

image of profile picture in imperial

Panel Specifications

MIN/MAX MIN/MAX MIN/MAX MIN/MAX
SLOPE MATERIAL THICKNESS SHEET LENGTH PANEL WIDTH
AR-25 3/12 – 12/12 0.018 – 0.030″ 2′ 6″ – 45′ 6″ – 28″
AR-38 1.5/12 – 12/12 0.018 – 0.030″ 2′ 6″ – 45′ 6″ – 28″
AR-50 0.5/12 – 12/12 0.018 – 0.030″ 2′ 6″ – 45′ 8″ – 24.5″



  • Side lap caulking is recommended when the slope is less than 2/12
  • Longer sheets are available. Additional charges may apply.
  • For AR-25, AR-38 or AR-50 with 180 degree seam – maximum gauge is 24 GA
  • Short sheet charge for any lengths under 48”

Standard Panel Widths

GAUGE AR-25 AR-38 AR-50
26 21.06″ 20.06″ 18.52″
24 21.06″ 20.06″ 18.52″
22 21.06″ 20.06″ 18.52″

Features

  • No exposed fasteners
  • Ease of installation
  • Full range of stock colours
  • Variable width
  • Optional stiffening flutes
  • Concealed hold-down clips
  • Knee Caps available
  • Optional two-piece expansion clip to accommodate roof movement
  • 24 gauge can be seamed 90° and 180°; 22 gauge can be seamed 90° only
  • Butyl Tape is recommended in 90° seams
  • Able to be curved – minimum sheet length 5’-0”

Oil Canning

  • Oil Canning is naturally occurring phenomenon inherent in all sheet steel.
  • Oil Canning is not a valid reason for rejection of these products

Installation

  • Single skin application
  • Recommended that this always be applied over solid substrate
  • Recommended that AR Series profiles be applied over waterproof membrane
  • Clips at maximum 2’ centers – 2 fasteners per clip
  • Mechanical and Hand Seamer required. For seamer purchase & rental visit the D.I. Roof Seamers website – or by calling D.I. Roof Installers at 1-888-343-0456

Hold-Down Clip Detail

fiexd clip and expansion clip



Overlap Seaming Options

90deg seaming stages T-style and 180deg seaming stages I-style

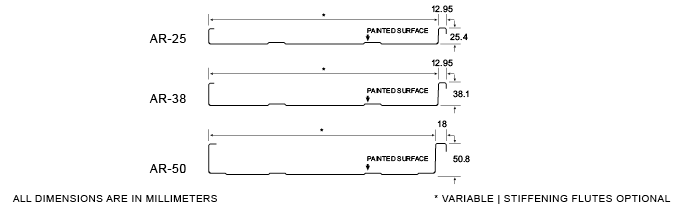

image of profile picture in metric

Panel Specifications

MIN/MAX MIN/MAX MIN/MAX MIN/MAX
SLOPE MATERIAL THICKNESS SHEET LENGTH PANEL WIDTH
AR-25 3/12 – 12/12 0.457 – 0.762 mm 0.76 – 13.71 m 152 – 711 mm
AR-38 1.5/12 – 12/12 0.457 – 0.762 mm 0.76 – 13.71 m 152 – 711 mm
AR-50 0.5/12 – 12/12 0.457 – 0.762 mm 0.76 – 13.71 m 203 – 622 mm



  • Side lap caulking is recommended when the slope is less than 2/12
  • Longer sheets are available. Additional charges may apply.
  • For AR-25, AR-38 or AR-50 with 180 degree seam – maximum gauge is 24 GA
  • Short sheet charge for any lengths under 1,219 mm

Standard Panel Widths

GAUGE AR-25 AR-38 AR-50
26 535 mm 509.5 mm 470 mm
24 535 mm 509.5 mm 470 mm
22 535 mm 509.5 mm 470 mm

Features

  • No exposed fasteners
  • Ease of installation
  • Full range of stock colours
  • Variable width
  • Optional stiffening flutes
  • Concealed hold-down clips
  • Knee Caps available
  • Optional two-piece expansion clip to accommodate roof movement
  • Seam can be 90° or 180° (see illustration)
  • Can be used on low slopes with a caulked 180° seam:
    • AR-38 down to 1.5/12  and;
    • AR-50 down to 0.5/12
  • Able to be curved – minimum sheet length: 1.52m

Oil Canning

  • Oil Canning is naturally occurring phenomenon inherent in all sheet steel.
  • Oil Canning is not a valid reason for rejection of these products

Installation

  • Single skin application
  • Recommended that AR Series profiles be applied over waterproof membrane
  • Recommended that this be applied over waterproof membrane
  • Clips at maximum 610 mm centers – 2 fasteners per clip
  • Mechanical and Hand Seamer required. For seamer purchase & rental visit the D.I. Roof Seamers website – or by calling D.I. Roof Installers at 1-888-343-0456

Hold-Down Clip Detail

fixed clip and expansion clip



Overlap Seaming Options

90deg seaming stages T-style and 180deg seaming stages I-style
