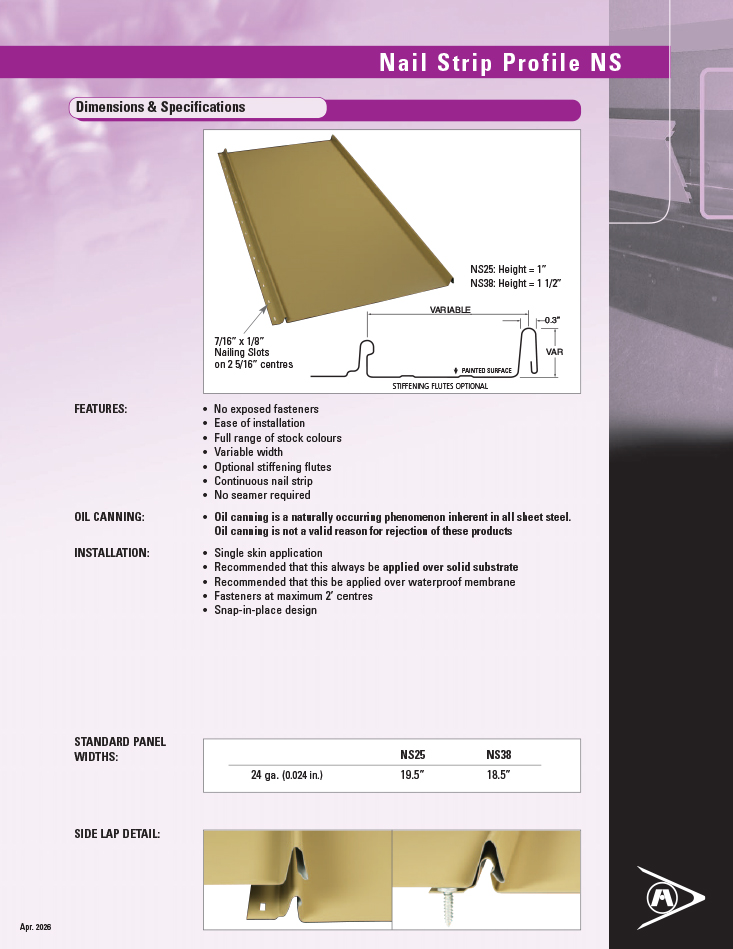

Product Sheet

Nail Strip

Agway’s Nail Strip panel system offers variable panel widths, two rib heights and easy installation, making it the ideal choice for seasoned contractors or do-it-yourselfers. Using a continuous nail strip that requires no seamer, Agway’s Nail Strip systems facilitate easy installation, making them a popular choice for residential, agricultural or commercial projects.

Whether you choose a profile from our Nail Strip, Standing Seam, or Snap Lock roof cladding systems, the result will be a stunning, architecturally distinctive roof that installs easily and has no exposed fasteners. All these durable Agway roof cladding products are available in a full range of stock colours, in variable panel widths, and with optional stiffening flutes. All require a single skin application and must be applied over a solid substrate and waterproof membrane. Knee Caps are also available (same changes as above).


Measurement Type


Profile Picture

image of profile picture in imperial

Features

  • No exposed fasteners
  • Ease of installation
  • Full range of stock colours
  • Variable width
  • Optional stiffening flutes
  • Continuous nail strip
  • Knee Caps available
  • No seamer required

Panel Specifications

MIN/MAX MIN/MAX MIN/MAX MIN/MAX
SLOPE MATERIAL THICKNESS SHEET LENGTH PANEL WIDTH
NS 25 3/12 – 12/12 0.0236” 2′ 6″ – 45′ 10″ – 28″
NS38 1.5/12 – 12/12 0.0236” 2′ 6″ – 45′ 10″ – 28″



  • Side lap caulking is recommended when the slope is less than 2/12
  • Longer sheets are available. Additional charges may apply.
  • For NS25 or NS38 with 180 degree seam – maximum gauge is 24 GA
  • Short sheet charge for any lengths under 48”

Standard Panel Widths

GAUGE NS25 NS38
24 19.56″ 18.56″

Oil Canning

  • Oil Canning is a naturally occurring phenomenon inherent in all sheet metal
  • Oil Canning is not a valid reason for rejection of these products

Installation

  • Single skin application
  • Recommended that this always be applied over solid substrate
  • Recommended that this be applied over waterproof membrane
  • Fasteners at maximum 2′ centres
  • Snap-in-place design

Side Lap Detail

side lap detail

Overlap Construction

image of ovrlap construction

image of profile picture in metric

Features

  • No exposed fasteners
  • Ease of installation
  • Full range of stock colours
  • Variable width
  • Optional stiffening flutes
  • Continuous nail strip
  • Knee Caps available
  • No seamer required

Panel Specifications

MIN/MAX MIN/MAX MIN/MAX MIN/MAX
SLOPE MATERIAL THICKNESS SHEET LENGTH PANEL WIDTH
NS 25 3/12 – 12/12 0.610 mm 0.76 – 13.71 m 254 – 711 mm
NS38 1.5/12 – 12/12 0.610 mm 0.76 – 13.71 m 254 – 711 mm



  • Side lap caulking is recommended when the slope is less than 2/12
  • Longer sheets are available. Additional charges may apply.
  • For NS25 or NS38 with 180 degree seam – maximum gauge is 24 GA
  • Short sheet charge for any lengths under 1,219 mm

Standard Panel Widths

GAUGE NS25 NS38
24 497 mm 471 mm

Oil Canning

  • Oil Canning is a naturally occurring phenomenon inherent in all sheet metal
  • Oil Canning is not a valid reason for rejection of these products

Installation

  • Single skin application
  • Recommended that this always be applied over solid substrate
  • Recommended that this be applied over waterproof membrane
  • Fasteners at maximum 2′ centres
  • Snap-in-place design

Side Lap Detail

slide lap detail

Overlap Construction

image of overlap construction
